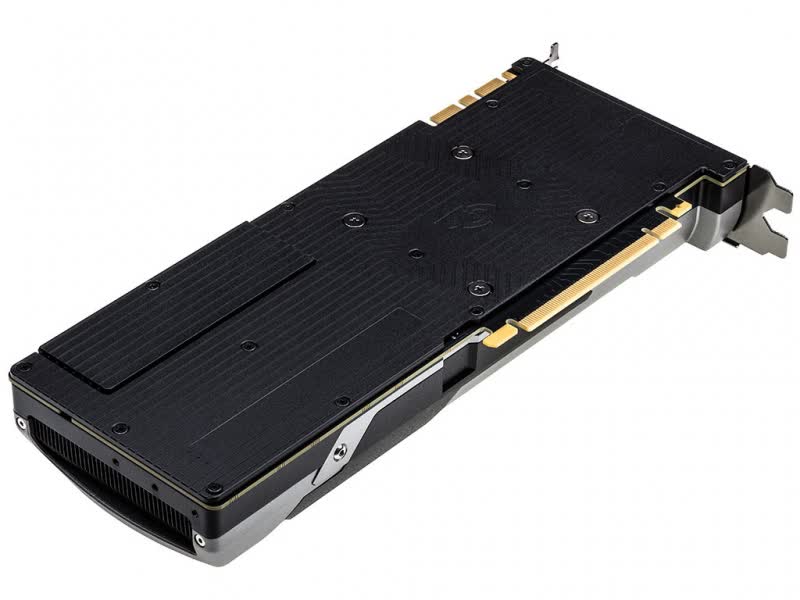

Nvidia GeForce GTX 970
The GeForce GTX 970 is one of Nvidia's two latest top-end GPUs, bringing excellent value as a high-end Maxwell-based graphics card. Along with 13 SMMs (equating to 1,664 CUDA cores), it packs the same memory specifications as the pricier GTX 980 and has a TDP of only 148W.
Maxwell
Architecture
Midrange
Product Tier
1664
Shader Cores
56
ROPs
104
TMUs
No RT
Ray Tracing
4 GB
Memory
GDDR5
Memory Type
224 GB/s
Bandwidth
148 W
TDP
| GPU Snapshot | |||
| Release date: | Sep 19, 2014 | Price at Launch: | $329 |
| Type: | Desktop | Architecture: | Maxwell |
| Generation: | GTX 900 series | Product Tier: | Midrange |
| VRAM Capacity: | 4 GB | Total Board Power: | 148 W |
| Core Configuration | |||
| Shader Cores: | 1664 | TMUs: | 104 |
| ROPs: | 56 | L2 Cache: | 2 MB |
| Memory | |||
| VRAM Capacity: | 4 GB | Memory Type: | GDDR5 |
| Memory Speed: | 7 Gbps | Memory Bus: | 256-bit |
| Bandwidth: | 224 GB/s | ||
| Graphics Processing | |||
| Base Clock: | 1.05 GHz | Boost Clock: | 1.17 GHz |
| FP32 Throughput: | 3.92 TFLOPs | Ray Tracing: | No |
| Process Size: | 28nm | Process Name: | TSMC 28nm |
| Die Size: | 398 mm² | ||
| Power & Connectivity | |||
| Total Board Power: | 148 W | Power Connectors: | 2x 6-pin |

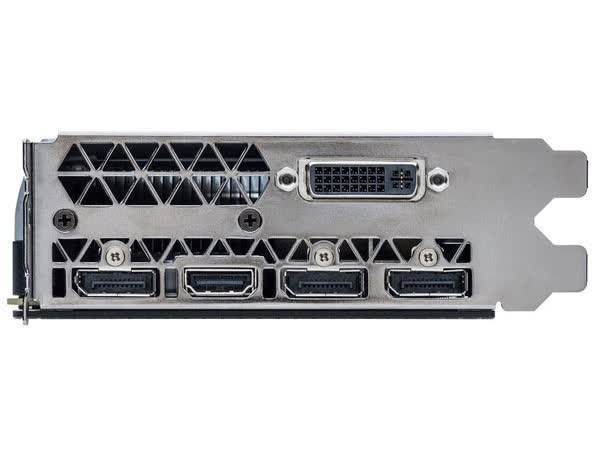

| Bus Interface: | PCIe 3.0 x16 | HDMI Support: | HDMI 2.0 |
| DisplayPort Support: | DP 1.2 | DSC: | No |
| Max Displays: | 4 | ||
| Media & Software Support | |||
| DirectX Support: | 12 | Shader Model: | 6.8 |
| Vulkan Version: | 1.4 | OpenGL Version: | 4.6 |
