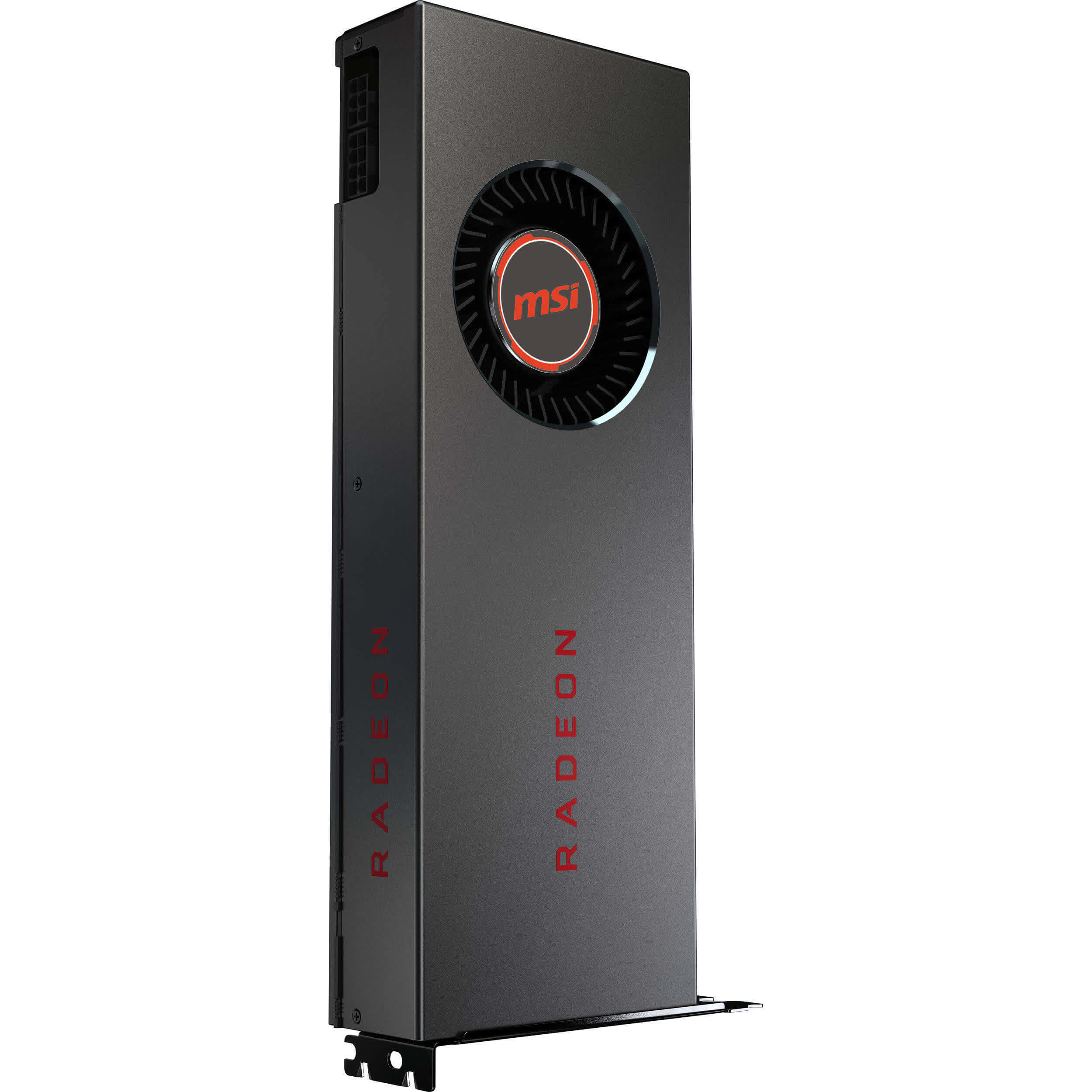

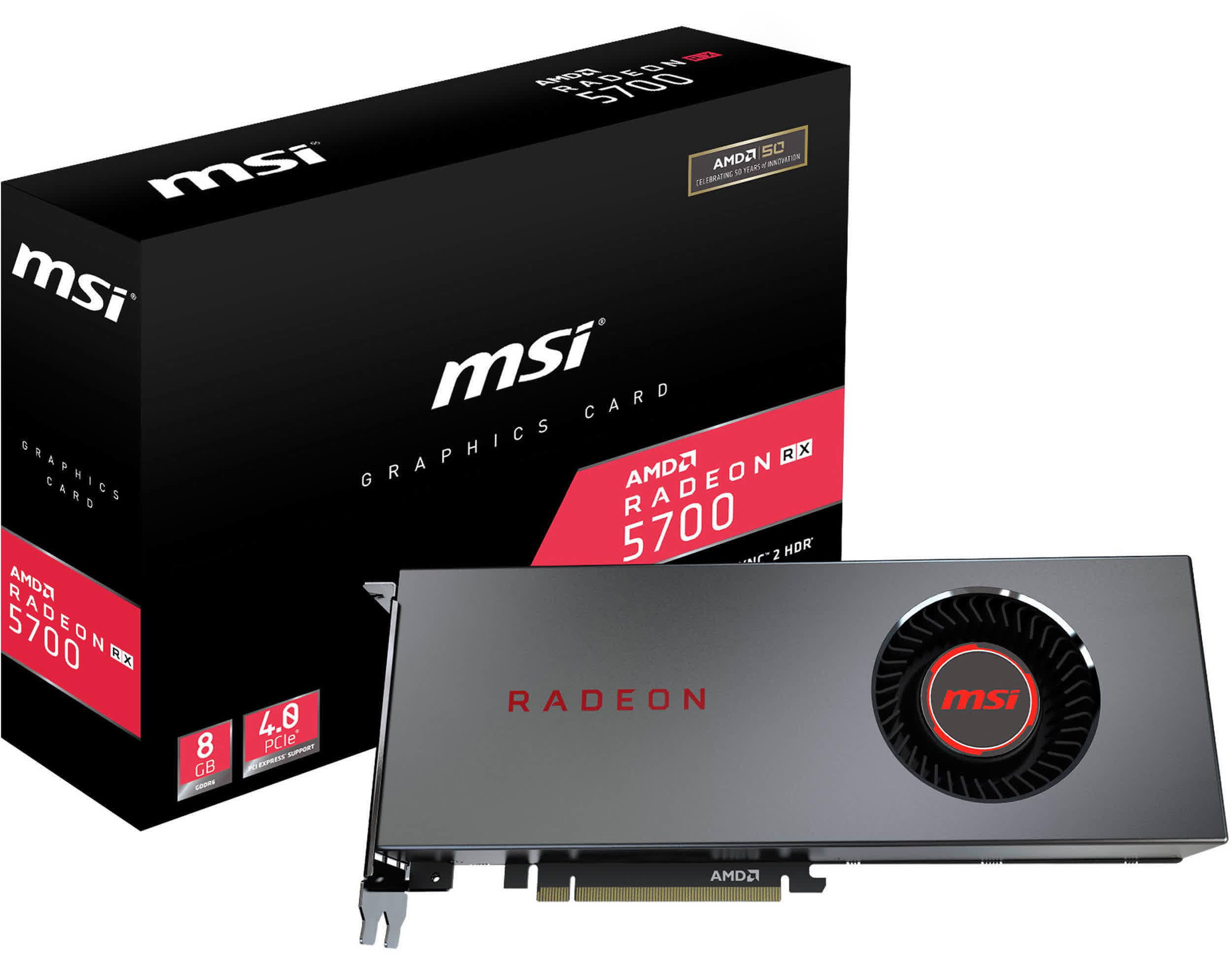

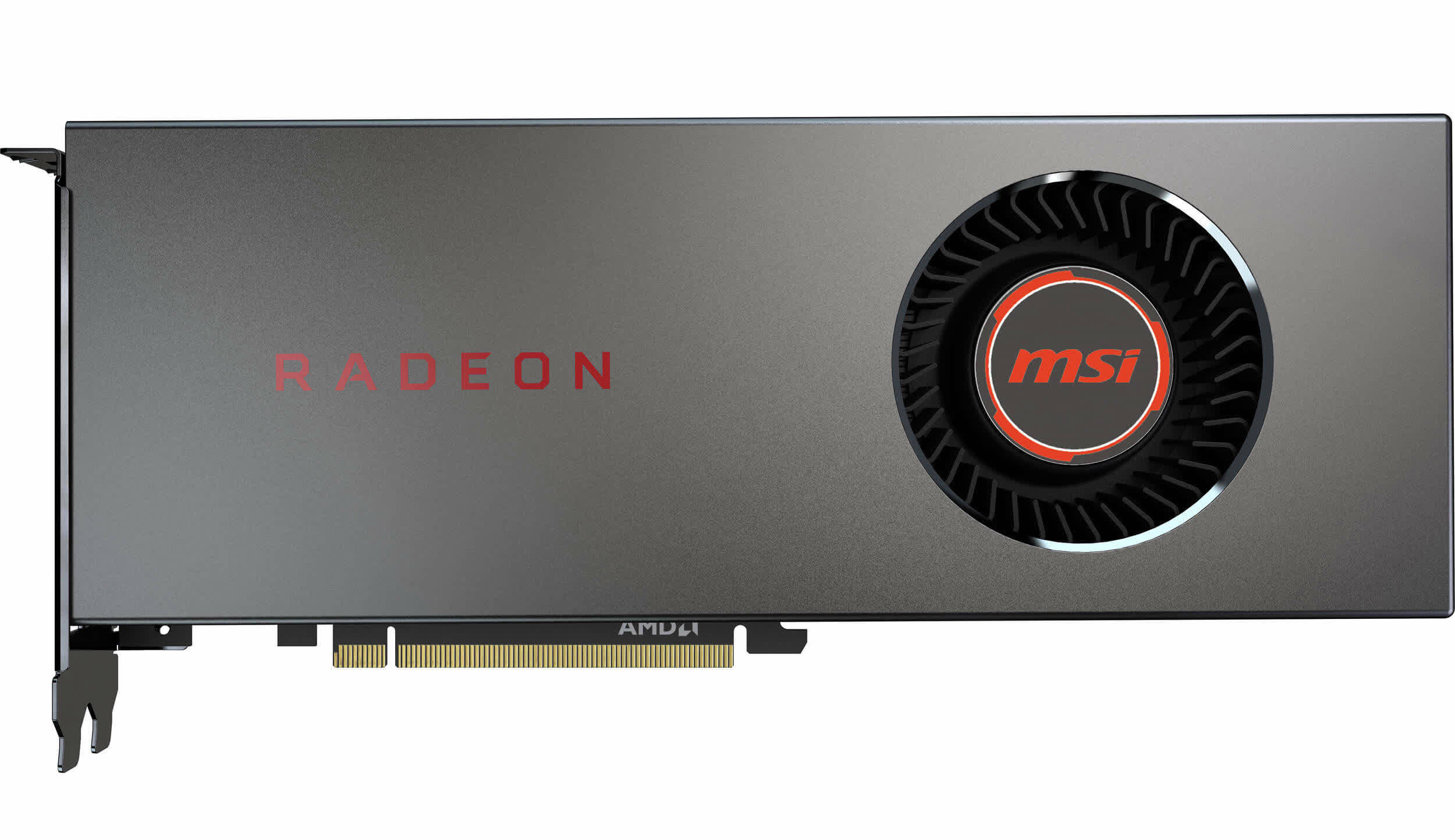

AMD Radeon RX 5700

If AMD is able to stock shelves with $400 5700 XT’s and $350 5700’s, then they will offer the best value at these price points. We're being told custom AIB models are on the way, too, and if they can boost out of the box performance a little, while bringing about the typical AIB card advantages, then Nvidia might be forced into making a few adjustments of their own and at that point we’ll have a good old fashioned GPU pricing war on our hands.
– As reviewed by TechSpot on Jul 2019
RDNA
Architecture
Midrange
Product Tier
2304
Shader Cores
64
ROPs
144
TMUs
No RT
Ray Tracing
8 GB
Memory
GDDR6
Memory Type
448 GB/s
Bandwidth
180 W
TDP
GPU Snapshot
Release date:Jul 7, 2019Price at Launch:$349
Type:DesktopArchitecture:RDNA
Generation:RX 5000 seriesProduct Tier:Midrange
VRAM Capacity:8 GBTotal Board Power:180 W
Core Configuration
Shader Cores:2304TMUs:144
ROPs:64L2 Cache:4 MB
Memory
VRAM Capacity:8 GBMemory Type:GDDR6
Memory Speed:14 GbpsMemory Bus:256-bit
Bandwidth:448 GB/s
Graphics Processing
Base Clock:1.46 GHzGame Clock:1.62 GHz
Boost Clock:1.72 GHzFP32 Throughput:7.95 TFLOPs
Ray Tracing:NoProcess Size:7nm
Process Name:TSMC N7Die Size:251 mm²
Power & Connectivity
Total Board Power:180 WPower Connectors:1x 8-pin + 1x 6-pin
Bus Interface:PCIe 4.0 x16HDMI Support:HDMI 2.0b

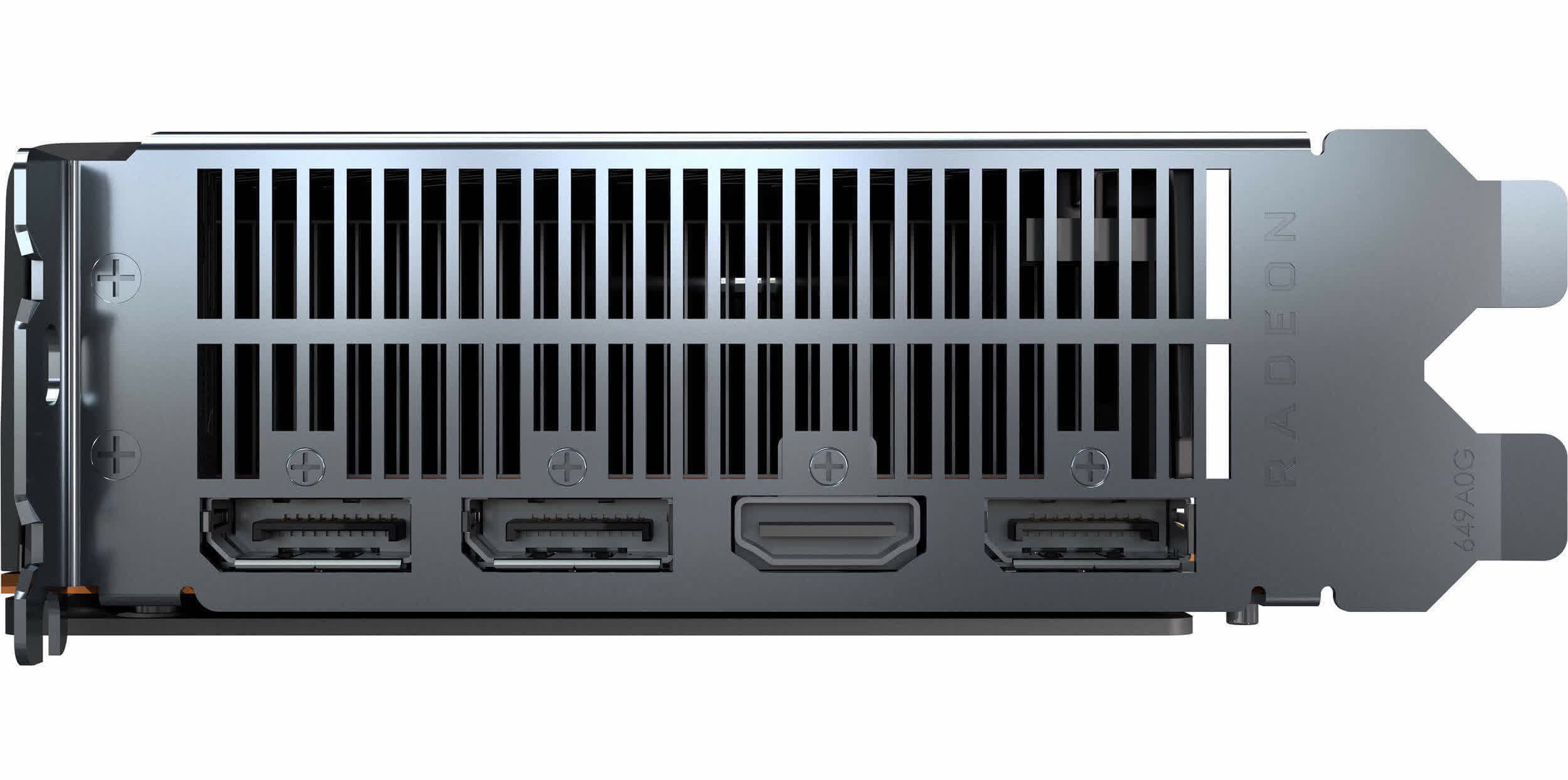

DisplayPort Support:DP 1.4aDSC:1.2a
Max Displays:4
Media & Software Support
DirectX Support:12Shader Model:6.8
Vulkan Version:1.4OpenGL Version:4.6

GPU Benchmarks

GPU benchmark scores are aggregated from dozens of tests conducted in TechSpot's labs, compiled from our full library of GPU reviews and gaming benchmarks. Scores are normalized to a shared baseline and organized by resolution, covering rasterized workloads exclusively. Ray tracing and upscaling technologies are disabled to guarantee consistent, like-for-like comparisons.

[GPU] 1440p Gaming

[GPU] 4K Gaming

Reviews and Ratings

86

Average Score

Based on 20 reviews

8.4

User Score

Based on 418 reviews

Reviewers Liked

  • Cheaper than the competition
  • PCIe 4.0 support makes it future proof
  • Best-in-class power efficiency
  • Excellent gaming performance
  • New RDNA architecture improves performance in several games

Reviewers Didn't Like

  • No real-time ray tracing
  • Blower-style cooler has higher temps than Nvidia's FE design

Today we've got a massive 41 game benchmark comparing the GeForce RTX 2060 Super and Radeon RX 5700 head to head. This big comparison includes new titles such as Borderlands 3, Gears 5 and Tom Clancy's Ghost Recon Breakpoint. All the results are brand...

By TechSpot on
85

If AMD is able to stock shelves with $400 5700 XT’s and $350 5700’s, then they will offer the best value at these price points. We're being told custom AIB models are on the way, too, and if they can boost out of the box performance a little, while bringing about the typical AIB card advantages, then Nvidia might be forced into making a few adjustments of their own and at that point we’ll have a good old fashioned GPU pricing war on our hands.

By TechSpot on
90

We found the Radeon RX 5700 GPU to be an impressive OpenCL workhorse which can be useful.AMD offers PCIe Gen4 that NVIDIA cannot match at this time. On the flip side, NVIDIA has better driver support and CUDA support making it able to accelerate a wider...

By servethehome.com on
100

This is, frankly, at least a year overdue. While Nvidia has been wowing with the real-time Ray Tracing and AI-powered anti-aliasing capabilities of its latest Turing GPUs, AMD has only been able to cough out a couple of underwhelming Vega and Polaris...

By Expert Reviews on
80

The RX 5700 is the lower priced alternative to the 5700 XT. It's as fast as Vega 64 and uses substantially less power, but still lacks DXR...

By PC Gamer on
90

AMD has introduced some attractive, next-generation GPUs that fill in the gap between the previous-gen Vega 56/65 and Radeon VII quite nicely, while also competing well with NVIDIA’s similarly-priced counterparts in the meatiest part of the enthusiast GPU market. With all of the buzz surrounding the Ryzen 3000 series – which is freakin’ awesome BTW – the prospect of an all-AMD-powered gaming PC system is looking better than it has for over a decade.

By HotHardware on
90

The Radeon RX 5700 delivers excellent gaming performance and power efficiency while moving the goal posts forward on several technological fronts.

By PCWorld on
85

Doing more with less, the streamlined RDNA architecture delivers a meaningful performance uplift over the disappointing Vega cards of the past generation, and efficiency improvements on the cutting-edge 7nm process help lower power consumption to more agreeable levels. Those are the two things near the top of most users' lists for a 2019 Radeon GPU, and with promising Ryzen 3rd Gen CPUs, a forward-looking X570 chipset and a growing selection of FreeSync monitors, there's now good reason to consider investing heavily in the AMD ecosystem.

By Hexus on
90

The RX 5700 and RX 5700 XT comfortably outperform the existing Vega cards, and the XT model often will give a higher frames-per-second than the Radeon VII, yet at nowhere near the price. Add in the addition of AMDs own Radeon Image Sharpening allowing you to run at lower resolutions than your monitors native one without softening the image quality too much and with a negligible performance impact; improved media rendering for all of you streamers who share your gaming exploits with the world. It makes the Navi a seriously attractive option for anyone.

By OC3D on
90

At $349 and $399 respectively these cards are currently the best value in 1440p gaming. They don’t have raytracing, that’s a draw back, but considering the level of support and performance-cost RT features bring, frankly, I don’t much mind. Much more important is that they deliver better-than-2070 frame rates for less than the cost of a 2070 while at the same time offering image enhancement to give you a better, crisper image. If you’re in the market, my recommendation would be to save up and buy the “XT” but as the results show, even the normal model offers “leadership performance” at this price point.

By MMO RPG on
85

The AMD Radeon RX 5700 and Radeon RX 5700 XT show they have what it takes to compete against the NVIDIA Geforce RTX 2060 and RTX 2060 SUPER.

By LegitReviews on
85

Today marks the official launch of AMD's new Ryzen 3000 processors, but also two new graphics cards – the Radeon RX 5700 and RX 5700 XT. This review has been focused on the cheaper of the two, the RX 5700, but if you want to read our launch-day review...

By Kitguru.net on
