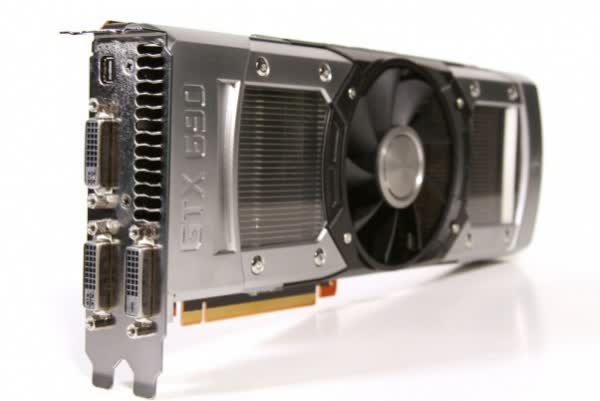

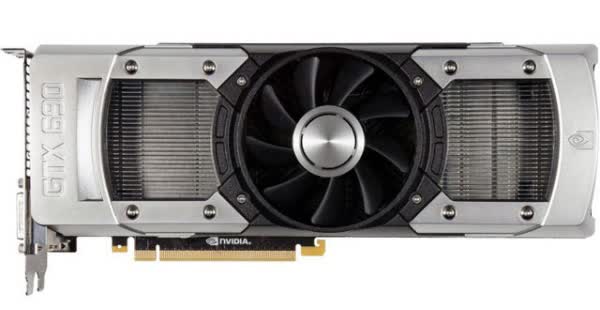

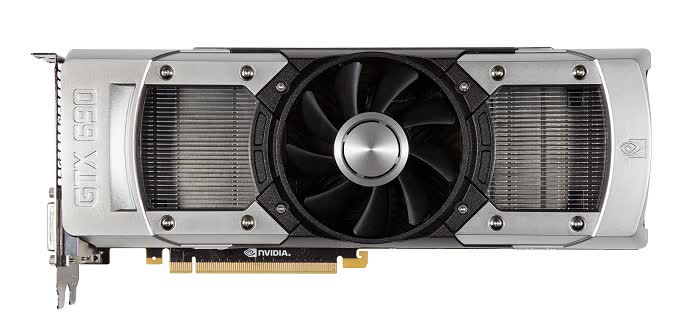

Nvidia GeForce GTX 690 4GB

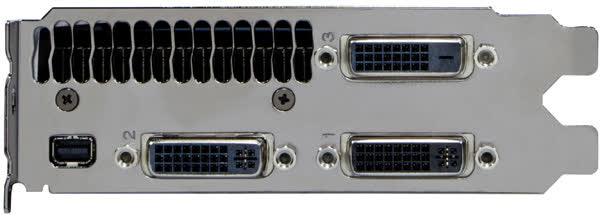

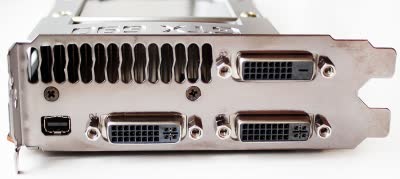

The Nvidia GeForce GTX 690 features 3,072 CUDA cores, 4GB of GDDR5 RAM at 6.0Gbps running on a 512-bit bus and a base clock of 915MHz, although it can be boosted to 1019MHz. Video output is provided by three dual-link DVI ports and a single Mini-DisplayPort 1.2 output. Power is provided by two 8-pin connectors using a new 10-phase heavy duty power supply which is connected to a ten layer two-ounce copper PCB.
Kepler
Architecture
High-end
Product Tier
3072
Shader Cores
64
ROPs
256
TMUs
No RT
Ray Tracing
4 GB
Memory
GDDR5
Memory Type
384 GB/s
Bandwidth
300 W
TDP
| GPU Snapshot | |||
| Release date: | May 3, 2012 | Price at Launch: | $999 |
| Type: | Desktop | Architecture: | Kepler |
| Generation: | GeForce 600 series | Product Tier: | High-end |
| VRAM Capacity: | 4 GB | Total Board Power: | 300 W |
| Core Configuration | |||
| Shader Cores: | 3072 | TMUs: | 256 |
| ROPs: | 64 | L2 Cache: | 1 MB |
| Memory | |||
| VRAM Capacity: | 4 GB | Memory Type: | GDDR5 |
| Memory Speed: | 6 Gbps | Memory Bus: | 512-bit |
| Bandwidth: | 384 GB/s | ||
| Graphics Processing | |||
| Base Clock: | 915 MHz | Boost Clock: | 1.01 GHz |
| FP32 Throughput: | 6.26 TFLOPs | Ray Tracing: | No |
| Process Size: | 28nm | Process Name: | TSMC 28nm |
| Die Size: | 294 mm² | ||
| Power & Connectivity | |||
| Total Board Power: | 300 W | Power Connectors: | 2x 8-pin |
| Bus Interface: | PCIe 3.0 x16 | DisplayPort Support: | DP 1.2 |
| DSC: | No | Max Displays: | 4 |
| Media & Software Support | |||
| DirectX Support: | 12 | Shader Model: | 6.5 |
| Vulkan Version: | 1.2 | OpenGL Version: | 4.6 |
Despite being built with notebooks in mind, Nvidia's new Kepler architecture has done wonders for desktop graphics cards. With its meagre energy needs and high performance, gamers have been blessed with a powerful product that doesn't sound like a...
By APC Magazine on
